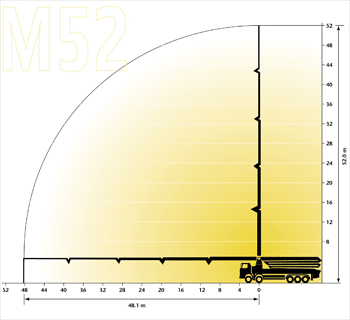

| M52 | |
|---|---|
| Maximum vertical reach | 52.0m |
| Maximum gross horizontal reach | 48.1m |
| Maximum net horizontal reach | 44.9m |
| Reach depth | 38.1m |
| Minimum unfolding height | 10.4m |
| Number of arms | 5 |
| Pipeline diameter | 125mm |
| Pump length | 14.4m |
| Front outrigger spread | 10.4m |
Dimensions given for guidance only
